Waterfall Shader

01 Feb 2015

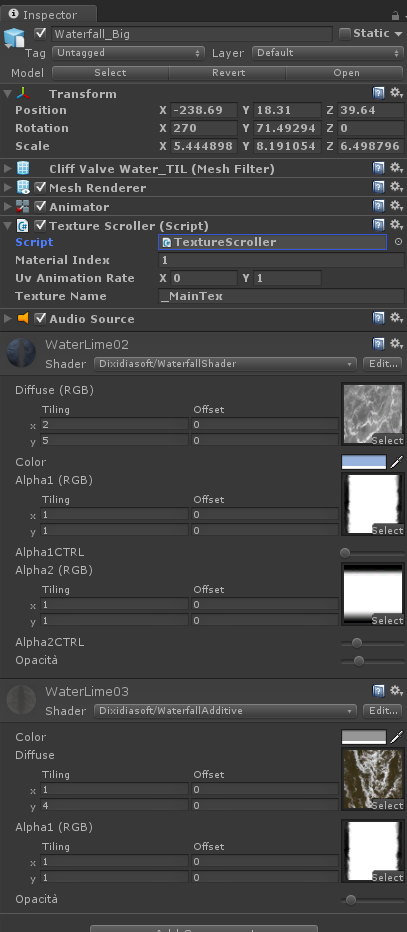

In this project, I had to create two shaders that were operating on transparency with more precision than the standard shaders of Unity. At the specific request of the Art Director of DiXidiasoft, so I created a couple of shaders, one that blends the transparencies taken input from different textures and another that acts additively concerning the color in the background What you see is, therefore, the result visually integrated into the game The Steampunk League. Everything then was combined with a script C# that has allowed us to give a constant offset to the UV in real-time.

Waterfall

Shader "WaterfallShader" {
    Properties {
    _MainTex("Diffuse (RGB)", 2D) = "white" {}
    _Color ("Color", Color) = (0.5,0.5,0.5)
    _Alpha1 ("Alpha1 (RGB)", 2D) = "white" {}
    _Alpha1CTRL("Alpha1CTRL",Range(0,1))=0.5
    _Alpha2 ("Alpha2 (RGB)", 2D) = "white" {}
    _Alpha2CTRL("Alpha2CTRL",Range(0,1))=0.5
    _Opacity ("Opacità",Range(0,1))=0.5
    }
 SubShader {
    Tags { "Queue"="Transparent" "RenderType"="Transparent"}
    cull off


    CGPROGRAM
    #pragma surface surf BlinnPhong alpha
    #pragma target 3.0
    sampler2D _Alpha1;
    sampler2D _Alpha2;
    sampler2D _MainTex;
    float _Opacity;
    float _Alpha1CTRL;
    float _Alpha2CTRL;
    float3 _Color;
    struct Input {
        float2 uv_Alpha1;
        float2 uv_Alpha2;
        float2 uv_MainTex;
    };
    void surf (Input IN, inout SurfaceOutput o) {
        fixed4 colore= tex2D (_MainTex,IN.uv_MainTex);
        o.Albedo= colore.rgb*_Color;
        fixed3 first = tex2D (_Alpha1, IN.uv_Alpha1).rgb;
        fixed3 second= tex2D (_Alpha2, IN.uv_Alpha2).rgb;
        fixed3 firstLerp=lerp (first,1,_Alpha1CTRL);
        fixed3 secondLerp=lerp (second,1,_Alpha2CTRL);
        fixed3 product = dot(firstLerp,secondLerp);
        o.Alpha = product.rgb*_Opacity;
    }
    ENDCG
 }
 FallBack "Diffuse"
 }

Waterfall Additive

Shader "WaterfallAdditive" {
     Properties {
          _Color ("Color", Color) = (0.5,0.5,0.5,0.5)
          _MainTex ("Diffuse", 2D) = "white" {}
          _Alpha1 ("Alpha1 (RGB)", 2D) = "white" {}
          _Opacity ("Opacità",Range(0,1))=0.5
          }
    Category {
        Tags { "Queue"="Transparent" "IgnoreProjector"="True" "RenderType"="Transparent" }
        Blend SrcAlpha One
        AlphaTest Greater .01
        ColorMask RGB
        Cull Off Lighting Off ZWrite Off Fog { Color (0,0,0,0)
        }
    SubShader {
        Pass {

            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #include "UnityCG.cginc"

            sampler2D _MainTex;
            fixed4 _Color;
            sampler2D _Alpha1;
            uniform float _Alpha1CTRL;
            uniform float _Opacity;

            struct vertexInput {
                float4 vertex : POSITION;
                fixed4 color : COLOR;
                float2 texcoord : TEXCOORD0;
                float2 alpha1 :TEXCOORD1;
            };

            struct vertexOutput {
                float4 vertex : POSITION;
                fixed4 color : COLOR;
                float2 texcoord : TEXCOORD0;
                float2 alpha1 :TEXCOORD1;
            };

            float4 _MainTex_ST;
            float4 _Alpha1_ST;

            vertexOutput vert (vertexInput v){
                vertexOutput o;
                o.vertex = mul(UNITY_MATRIX_MVP, v.vertex);
                o.color = v.color;
                o.texcoord = TRANSFORM_TEX(v.texcoord,_MainTex);
                o.alpha1 = TRANSFORM_TEX(v.alpha1,_Alpha1);
                return o;
            }

            sampler2D _CameraDepthTexture;

            fixed4 frag (vertexOutput i) : COLOR
            {
                float3 mainTex=_Color*tex2D(_MainTex, i.texcoord);
                float3 alpha1Tex=tex2D(_Alpha1, i.alpha1);
                float3 colore=2.0f * i.color * _Color * mainTex * alpha1Tex;
                return float4(colore,_Opacity);
            }
            ENDCG

        }
    }
    }
}

Waterfall Shader from Luca Pierabella on Vimeo.
