Tool Development in 3Ds Max
13 May 2019In the last month I moved into a new position in my company, I decided to be more focused on tool development for 3DS Max. I’m still a Technical Artist but fortunately, this role is very large and give me the possibility to change when I’m a little bit bored, or I think it is time to improve my skill in some area I really think that to learn something I need to get out of my comfort zone. That’s why I grabbed 3DS Max (leaving my beloved Maya) and I decided to build my tools completely in Python
So let’s keep it clear, 3DS Max has a really nonmature python SDK, the fastest way to write tools in Max for years has been MaxScript(and almost certainly, it is still the same today) But there is a difference between a fast job and a proper job I mean with maxscript, from what I see you can do everything, but the point is..how? Is it correct to call pieces of code in maxscript, randomly call batch script, or inject .Net code to achieve something? Can you make unit test development, or create a sort of SDK to avoid to reinvent the wheel every time you make a tool? I don’t think so. I studied a bit of maxscript before to take my decision to switch to python. To be honest, in a professional environment everyone should be able to prototype quickly and mess around with some maxscript cycle But the moment you start to do some complex tool, trying to write a complex UI, accessing library and processes outside 3dsMax, it is clear that maxscript is not enough, and also I do not like to learn useless languages.
So I choose python and let’s say if we can really use it in all his power in 3DSMax
Disclaimer: Every language has is pro and cons but until Autodesk will continue to write documentation like a chimp, do not stress if you fill frustrated if you spend one hour looking for a function, it’s simply Autodesk
Let’s analyze some pro and cons
I added a personal evaluation to the documentation based on a range from 0 to 5
Documentation | SDK | UI | language type | |
---|---|---|---|---|
c++ | 2 | yes | yes(qt) | compiled |
.NET | 0 | yes | yes(WPF,WinForm) | compiled |
Python | 1 | yes | yes(PyQt/PySide) | interpreted |
MaxScript | 4 | no | yes | interpreted |
C++ is the most powerful, not so bad documented (we can expect more from Autodesk) but unfortunately, you have to re-run max every time you recompile. In other recently I’ve seen a Python talk called “How to write fast Python code”. Someone notified to the man who exposed the talk the actually just writing the python code in c, was already a way to write fast Python code. That is why the talk has been renamed “How to write fast python code, and do not hate your job”…I think this is already a clear point. So, no thanks, at least if I have to do something memory-linked
.NET is so bad documented that I think is an Autodesk joke,but at least you have access to everything with good completion.And this make the difference. I’m contributing to development of BabylonJS specifically on the 3DSMax Exporter, and it is not so bad as development environment. Especially if you managed to add some pre/post build event to give you the possibility to fast build and deploy on Max
Python can use both Max lib, at the same time if you want (max plus and pymxs), thanks to the fact that is interpreted we have a fast pipeline. And switching between MaxPlus documentation, maxscript documentation(in case you use pymxs) and PySide(really well documented), you can find mostly everything. NOTE: MaxPlus will be discontinued in the future versions of Max For the rest, thanks god for Google, ADN forum, and techartist.org
Lets see how to configure everything to write python code.
Editor
I came from year of development in .NET and thought could be easy to do everything with VSCode or Visual Studio. It ended up that if you want to have less headache possible just use PyCharm. For me is the best Python Ide in the world Because of the nature of the project I’m working on now , I configured PyCharm to point to user/documents/3dsmax/script folder There I have all my samples, tools not linked to any projects , simple idea, and symlink to my current production projects
open the prompt in max installation folder as administrator and create a symlink
mklink python.exe 3dsmaxpy.exe
This because PyCharm accept only interpreter called python.exe now PyCharm will index the resources of the new interpreter and normally library like MaxPlus will not be marked as error

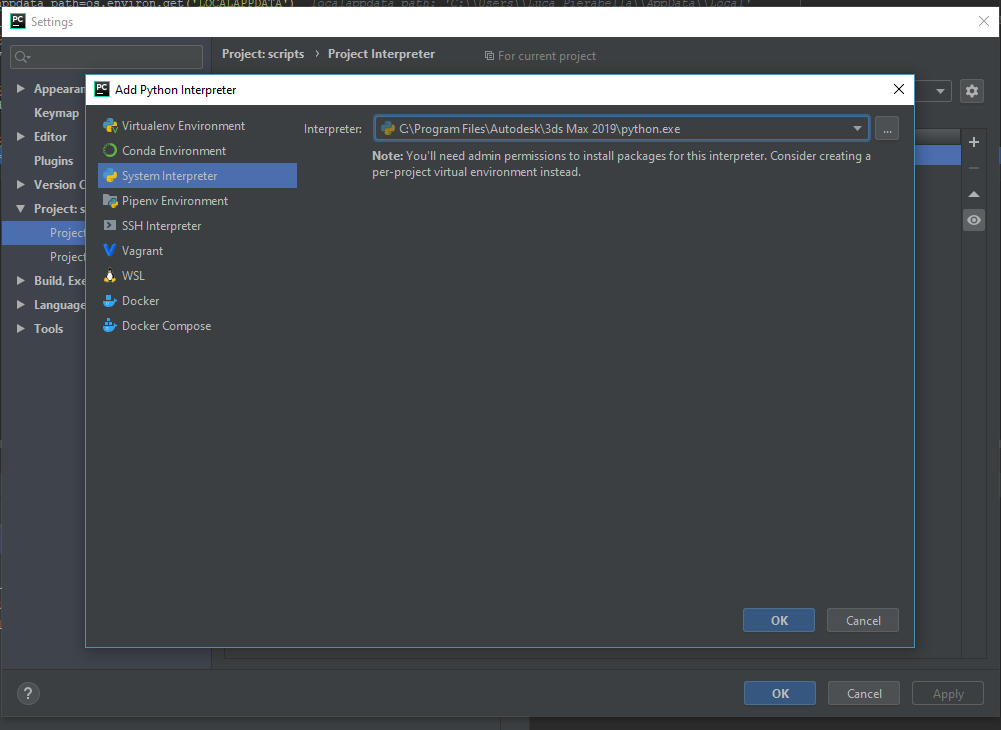

Open PyCharm settings and add a System interpreter passing the [3dsmaxfolder]/python.exe as interpreter
Wait for PyCharm sync everything

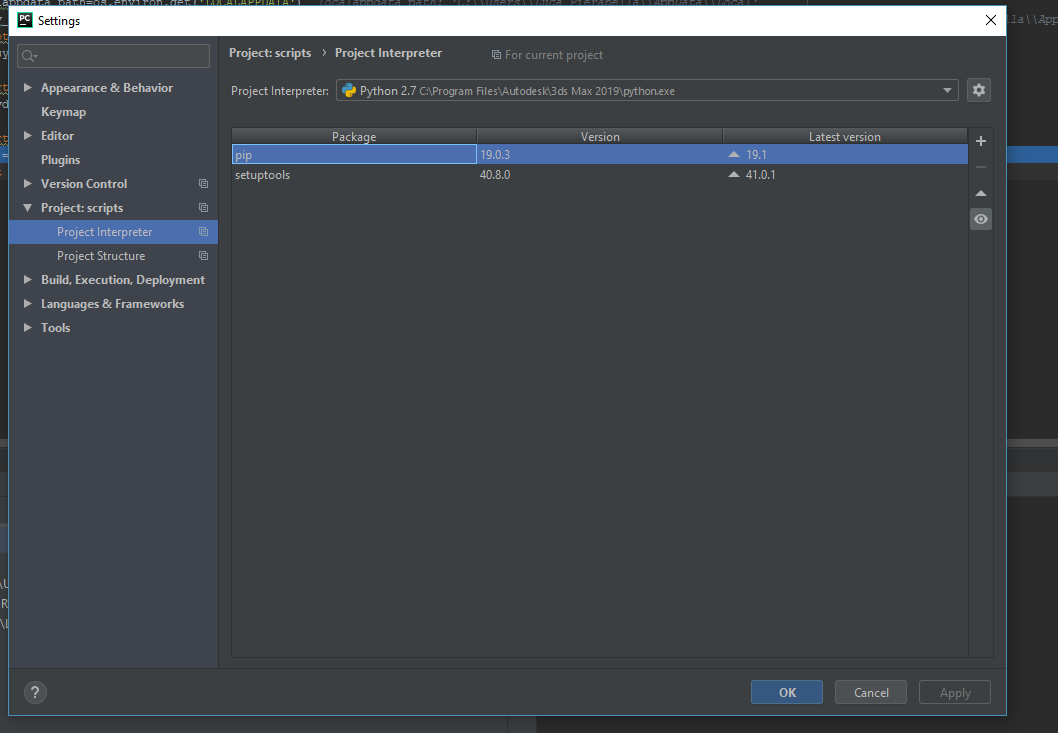

If you want to install the suggested “Config Tool” do it and then remove except for pip and setup tools

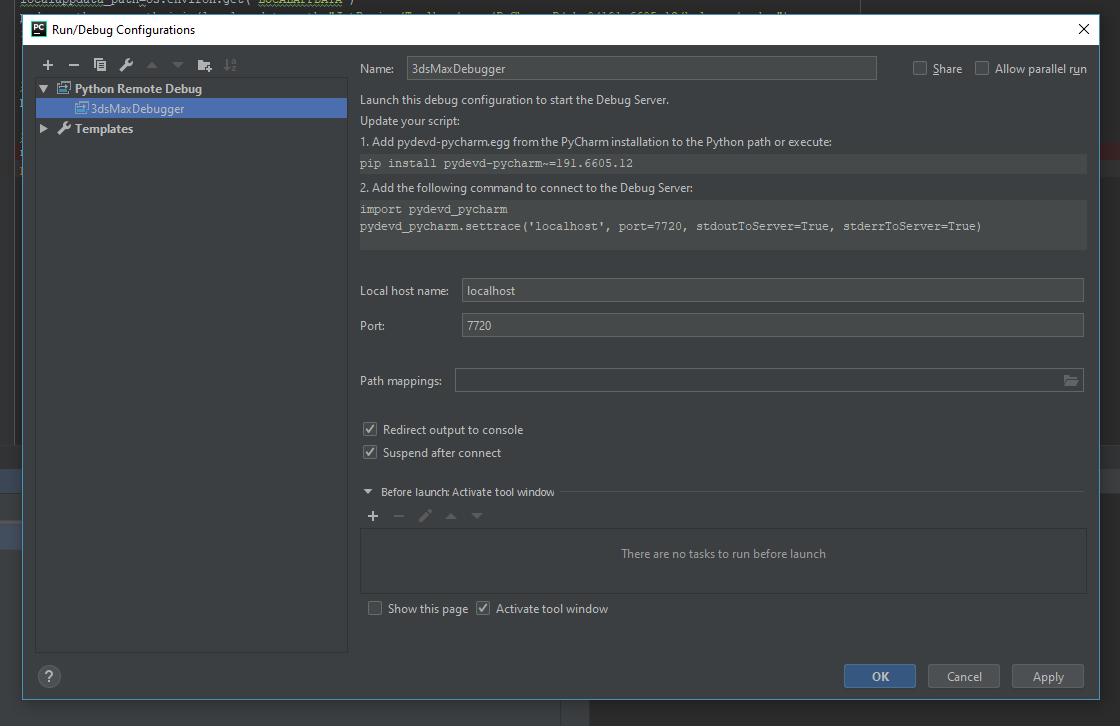

Add a project configuration passing a python remote debugger
Remember to pass the port 7720
now we can create a test.py in script folder and add something like this
import MaxPlus as mp
node = mp.Core.GetRootNode()
print "hello World: " + str(node)
if everything went ok call this from max listener:
python.ExecuteFile @"[project_path]\scripts\Test.py"
we should have something like this.
hello World: INode: Scene Root, <000001C7A4AD2EB0>
#success
Debug
Now the tricky part, we need to install PyCharm Professional to do this
copy
%localappdata%\JetBrains\Toolbox\apps\PyCharm-P\ch-0\191.6605.12\debug-eggs\pydevd-pycharm.egg
to
C:\Program Files\Autodesk\3ds Max 2019\python\pydevd-pycharm.egg
Adding this line on top of your script you should be able to debug
import sys
import os
localappdata_path=os.environ.get('LOCALAPPDATA')
# WARNING!: this path could not corrsipond on your pc
pydev_path = os.path.join(localappdata_path,"JetBrains/Toolbox/apps/PyCharm-P/ch-0/191.6605.12/helpers/pydev")
if not pydev_path in sys.path:
sys.path.append(pydev_path)
import pydevd_pycharm
pydevd_pycharm.settrace('localhost', port=7720, suspend=False)
import MaxPlus as mp
node = mp.Core.GetRootNode()
print "hello World: " + str(node)
Voila , now adding a breakpoint and calling again
python.ExecuteFile @"[project_path]\scripts\Test.py"
will hit the breakpoint
now is time to configure PyCharm to automate this, avoiding to call the script from max listener
download the last release of MXSPyCom.zip and copy the MXSPyCom.exe into “C:\Program Files\Autodesk” and the initialize_COM_server.ms in %localappdata%\Autodesk\3dsMax\2019 - 64bit\ENU\scripts\startup

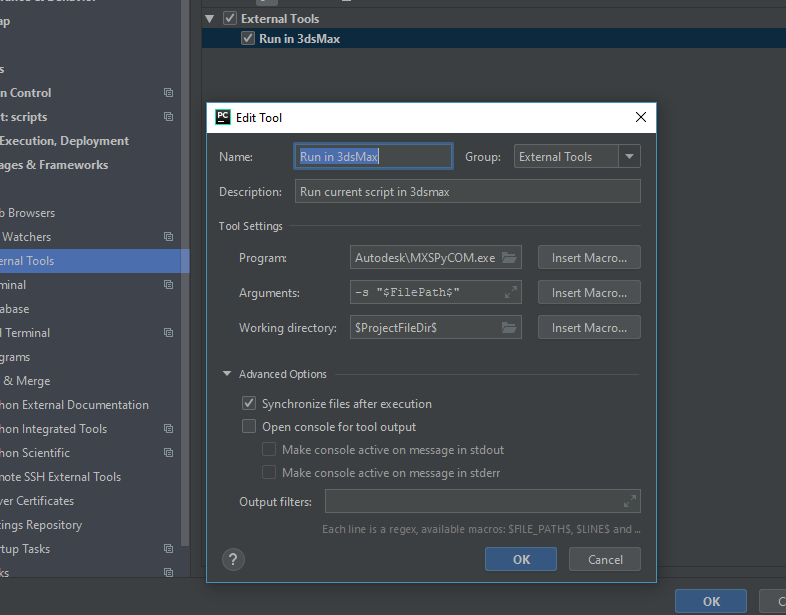

now create a an external tool in PyCharm as described here
and probably you would like to assign a keymap shortcut to this command in settings->keymap I use ctrl+alt+shift+e to execute the current script And ctrl+e to run the init.py of a custom package when I’m working on a new tool
Designer
The second advantage is that you can use a really good designer tool to create the interface of your tools. install qt5 and Qt designer I have an installation of Maya that come with the Qt designer already installed and I will you this one

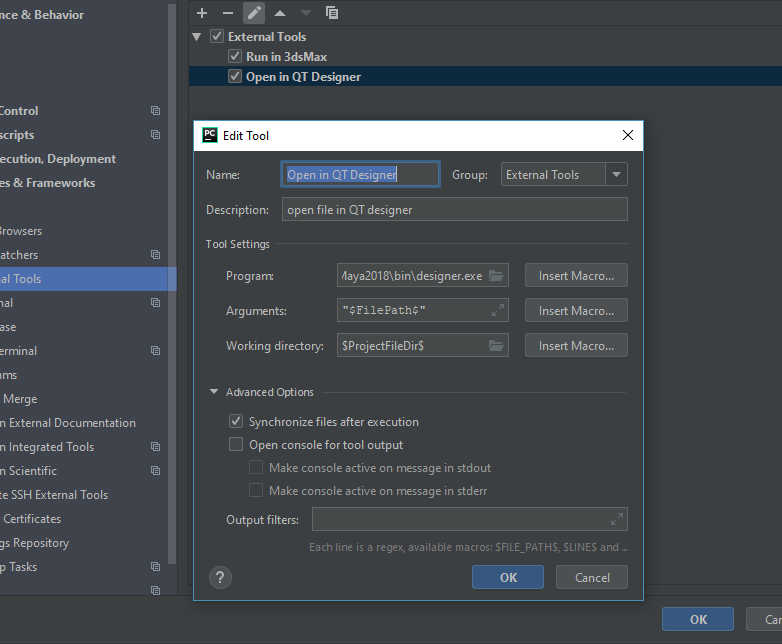

As before let’s create an external tool to open *.ui file with the Qt designer

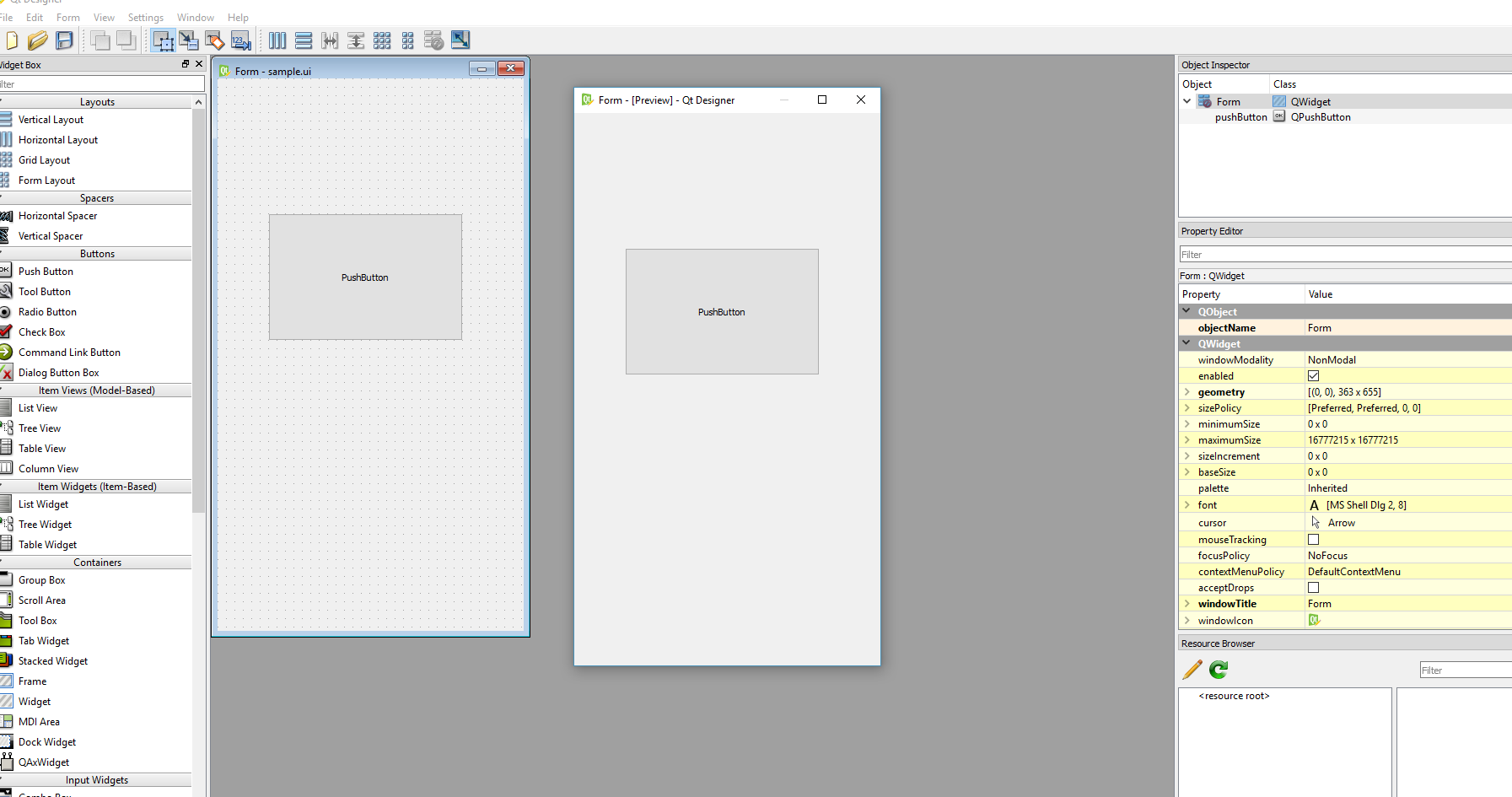

You can now build your ui and preview with ctrl+R
For more information on how to use ui and python read Autodesk doc
MaxScript support
We can also use PyCharm to run maxscript but of course we cannot have the debugger
I will write in my next posts some in formation on how to build an SDK and how to keep everything consistent using Test Driven development
